Kingpin Suspension
Delivering a smooth ride without the added weight and complexity of a shock and links, Kingpin is our answer for the most demanding gravel riders. Whether you need more comfort to go long, more traction to push beyond or more give to take on the tech - Kingpin is the maintenance-free, lightweight answer to your prayers.
Ride Brilliantly

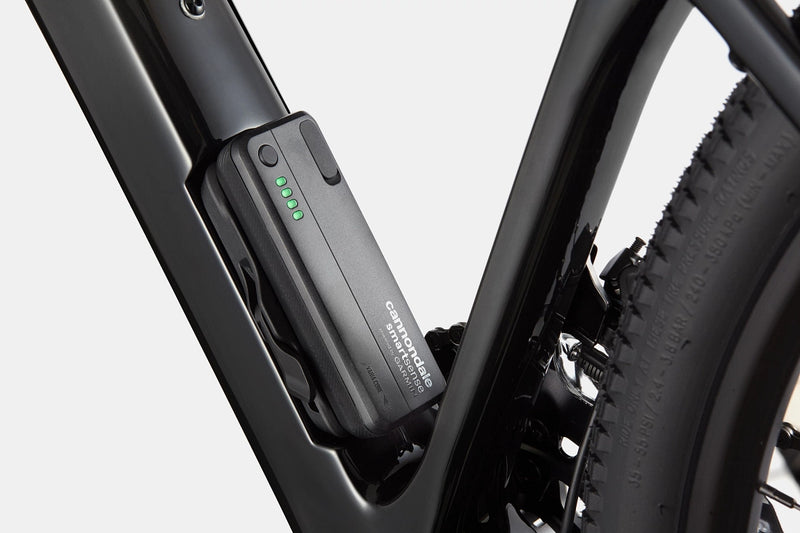

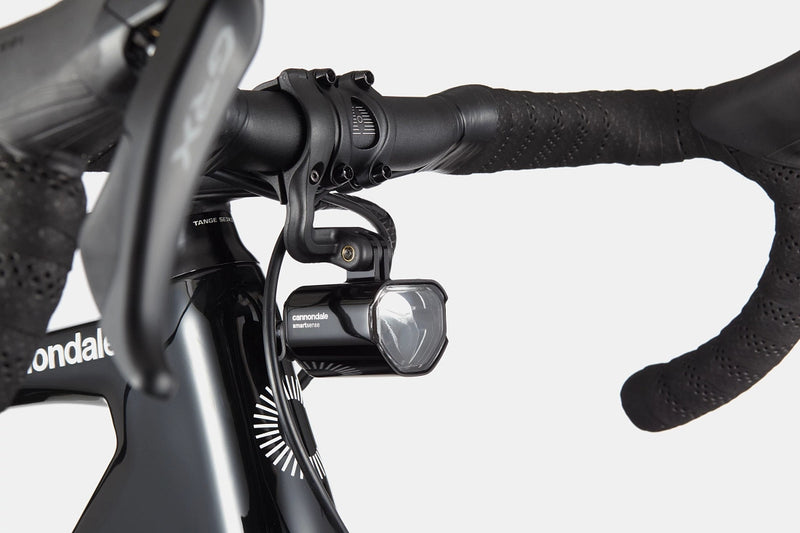

On every ride, SmartSense has your back. SmartSense’s system of intelligent lights (and optional rear-facing radar) increases your visibility out on the open road and makes it easy to ride smart.
Load Up. Roll Out.
With plentiful gear and waterbottle mounts on the frame and fork, Topstone Carbon is ready to load up and go long.
Corner like a Boss
Rail through the rough and come out smiling. Led by our OutFront steering geometry, the Topstone Carbon offers up handling that's serenely stable in the chop, and light & nimble everywhere else.
Details
-
-
Model Name

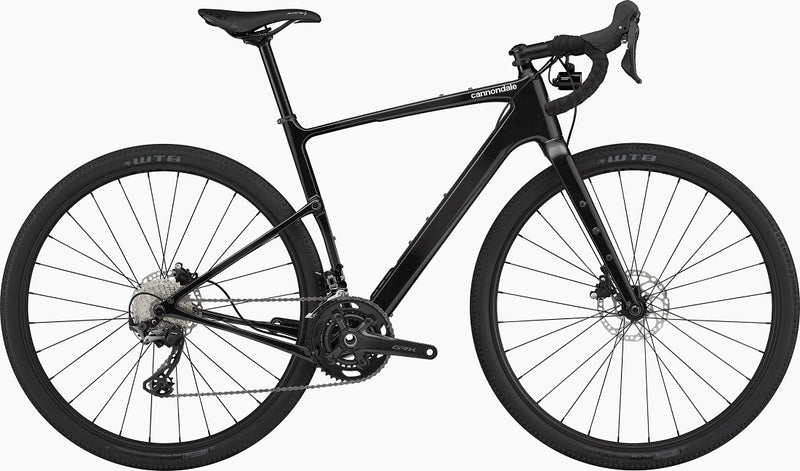

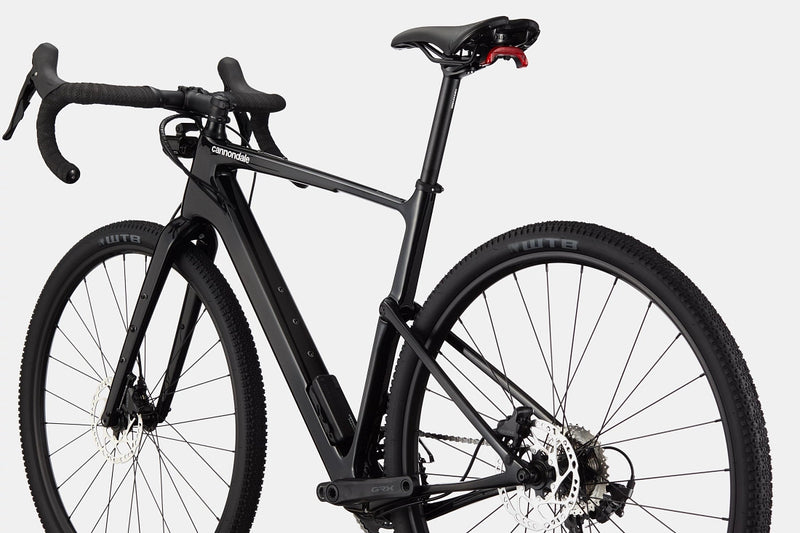

Topstone Carbon 3 L
-
Frameset
-
Frame
Topstone Carbon, Kingpin suspension system, SmartSense equipped, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
-
Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
-
Headset
Integrated, 1-1/8" - 1.5"
Drivetrain
-
Rear Derailleur
Shimano GRX 810, Shadow RD+
-
Front Derailleur
Shimano GRX 810, braze-on
-
Shifters
Shimano GRX 600, 11-speed
-
Chain
Shimano HG601, 11-speed
-

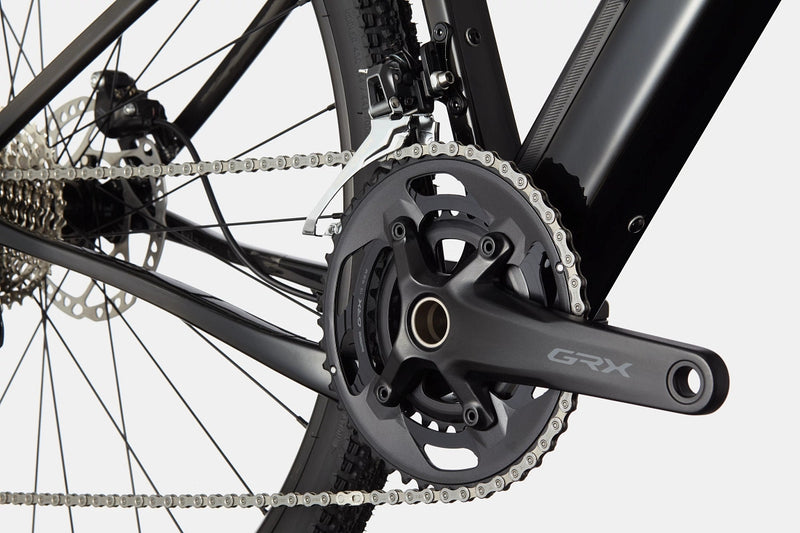

Crank
FSA Gossamer Pro Modular AGX+, 46/30
-
Rear Cogs
Shimano HG700, 11-34, 11-speed
-
Bottom Bracket
FSA Mega EXO
Brakes
-
Brakes
Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
-
Brake Levers
Shimano GRX 600 hydraulic disc
Wheels
-
Rims
WTB ST i23 TCS, 700c, 28h, tubeless ready
-
Spokes
Stainless Steel, 14g
-
-
-
Hubs
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
-
Tires
Maxxis Rambler TR, 700x40c, tubeless ready
Components
-

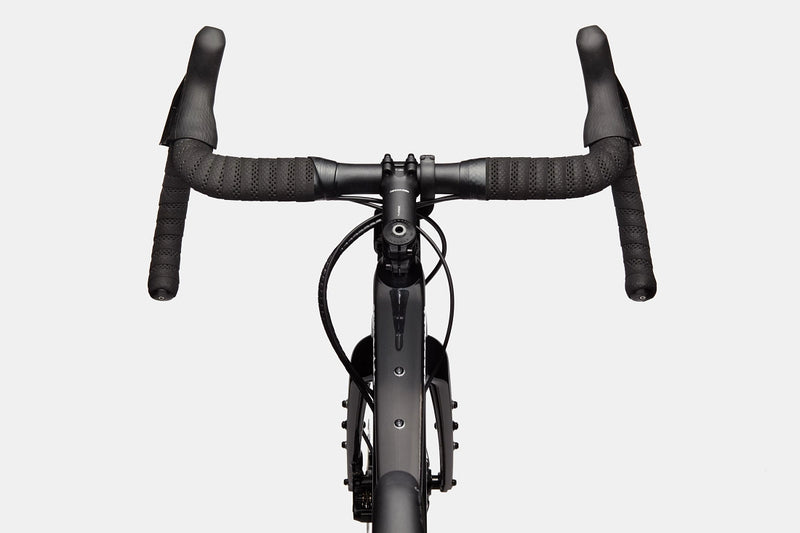

Handlebar
Cannondale 3, butted 6061 Alloy, 16 deg flare drop
-
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
-
Grips
Fizik Solocush Soft, 3mm
-

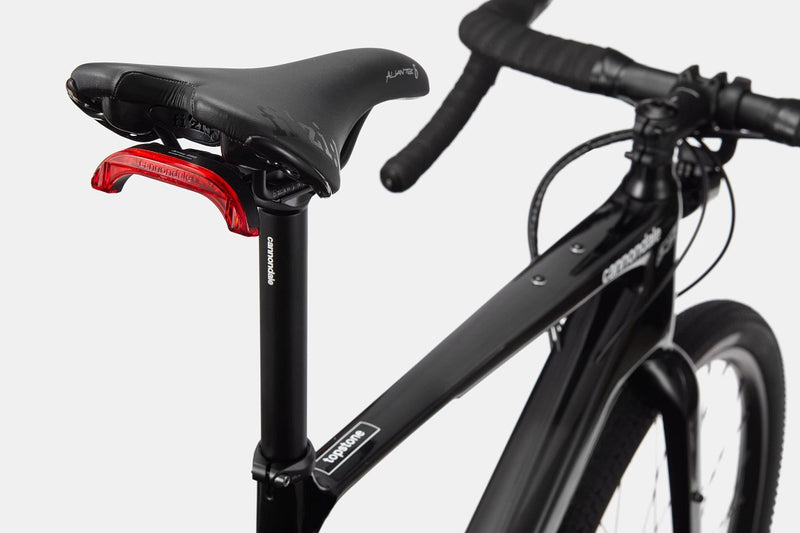

Saddle
Fizik Aliante Delta, S-alloy rails
-
Seatpost
Cannondale 3 SmartSense, 6061 Alloy, 27.2x350mm
Connectivity
-
Wheel Sensor
Cannondale Wheel Sensor
Extra
-
Extra 1
SmartSense with Lights
Safety Information
-
Ingestion Hazard
WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
Please note that, based on component availability and other factors, specifications are subject to change without notice.
